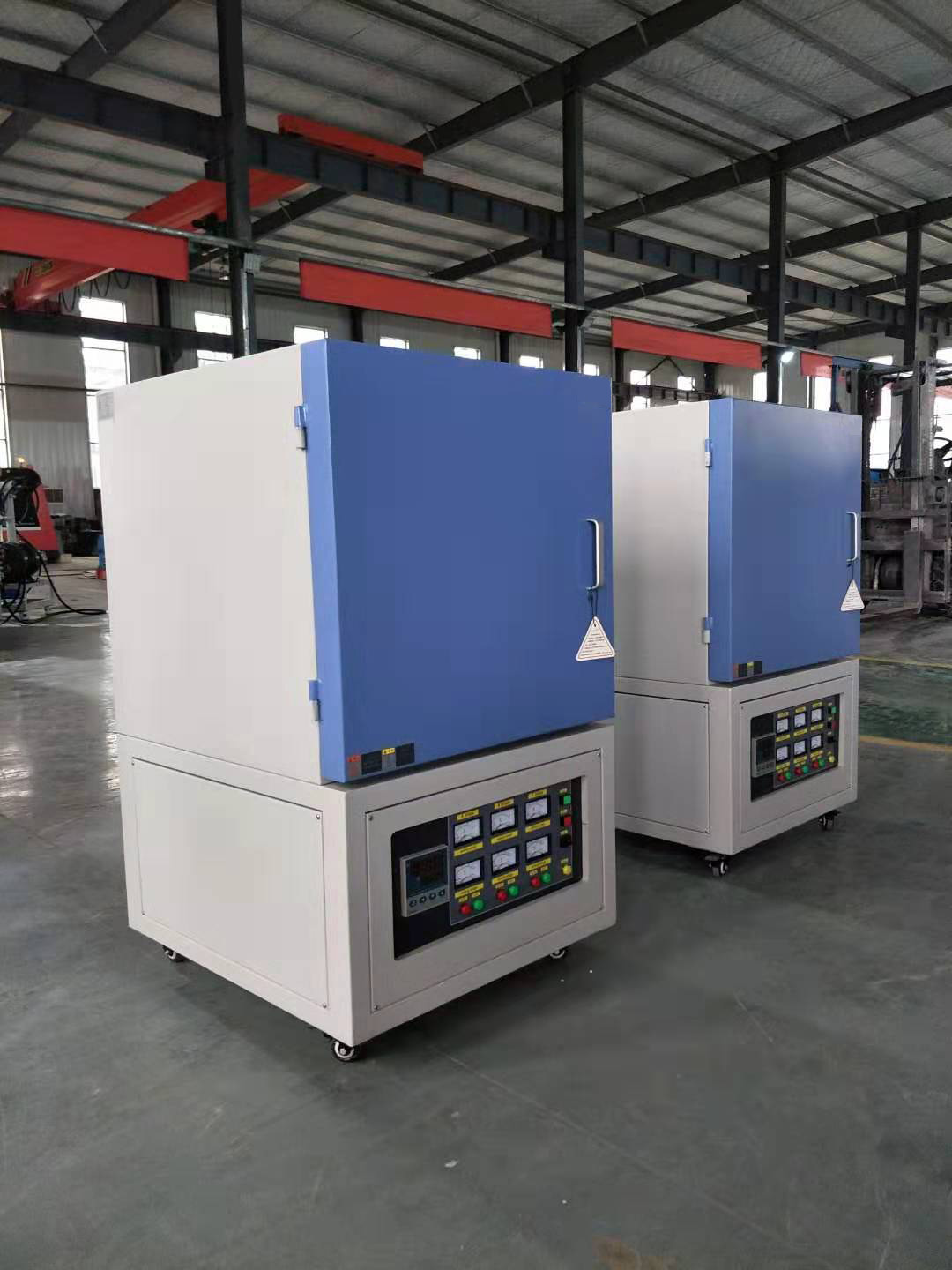

فرن مكُم يستخدم سلك المقاومة كعناصر تسخين، والتي يمكن استخدامها حتى 1200℃. هذه الأفران المكممة هي مثالية للعديد من التطبيقات في المختبر. وهو اداة مثالية لتصلب المواد وتلبيخها في بحثكم.
1. عملية درجة الحرارة: 1100℃ (1200 ℃لفترة قصيرة).
2. يتحقق الحد الأقصى من كفاءة الطاقة من خلال إحاطة الغرفة مع عزل السيراميك من ألياف الألومنيوم بكفاءة حرارية.
3. هيكل مزدوج الطبقة للخدمة الشاقة مع مروحة تبريد. درجة حرارة أقل في الحقيبة الخارجية
4. وقد أطلق المقاوم التحكم التلقائي في معرفات المعلمات من خلال زاوية الطور المحددة للتيار، على سبيل المثال SCR (المقوم المسيطر عليه بالسيليكون).
5. التحكم في الطاقة مع 51 مقطع قابلة للبرمجة
Max. temperature | 1200 C (<2hour) | |
Working temperature | 1100 C | |
Temperature controlling | PID automatic control via SCR (Silicon Controlled Rectifier) power control with phase angle fired, current limiting resistor. | |
30 programmable segments for precise control of heating rate, cooling rate and dwell time. | ||
Built in PID Auto-Tune function with overheating & broken thermocouple broken protection. | ||
Over temperature protection and alarm allows for operation without attendant. | ||
Temperature accuracy | ±1C | |
Temperature Uniformity | ±5C over 120mm @ 1100C | |
±3C over 80mm @ 1100C | ||
Heating rate | 0-20C /min | |
Thermocouple | K type with 99.7% purity Alumina tube | |
Heating element | Quality heating wire | |

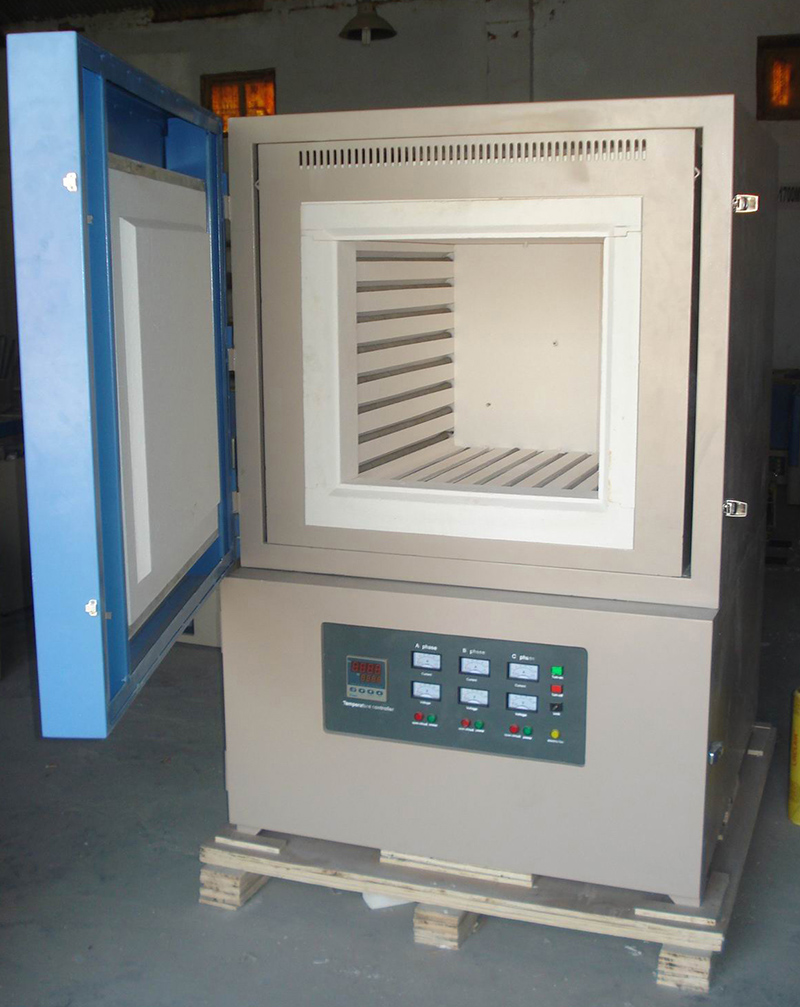

Furnace Chamber | Two layers of ceramic fiber insulation materials | |
First layer: 1430°C ceramic fiber board, density 450kgs/m3. Thermal conductivity (1200℃) is only 0.18W/m.k. | ||
Second layer: 1260°C ceramic fiber board, density 350kgs/m3. | ||
Furnace structure | Double layer steel casing with dual cooling fan, surface temperature below 60oC | |
Furnace door | Front-side open | |
Power cutting off when furnace door open | ||
Working voltage | 220V, 50HZ | |
Rated power | 7KW | |
Warranty | One year limited warranty with life time support. (Consumable parts such as heating elements and crucibles are not covered by the warranty, please order the replacement at related products) | |
ATTENTION: Any damages caused by the use of corrosive and acidic gases are not under the coverage of One Year Limited Warranty. | ||
Certifications | CE | |
Ⅱ. Application Notes | ||
Using Attentions | Cooling rate shall also not exceed 10℃ /min. | |
Toxic or explosive gases are not recommended for use with this furnace without necessary | ||
safety controls and supervision. | ||
Small cracks may appear on the surface of the refractory ceramics over extended use. This is a normal occurrence and the cracks may be repaired with alumina coating. | ||
Refractory door block must be inserted before closing door. |
Standard Size:
Type | Max.Temperature(℃) | Furnace Chamber Size(mm) | Volume(L) | Rated Power(kw) |
(Width x Height x Depth) | ||||
JHP-2-1 | 1200/1400/1700/1800 | 100x100x100 | 1 | 0.8 |
JHP-2-2 | 1200/1400/1700/1800 | 120x120x130 | 2 | 1.5 |
JHP-2-3 | 1200/1400/1700/1800 | 150x150x150 | 3 | 2 |
JHP-2-5 | 1200/1400/1700/1800 | 150x150x200 | 5 | 3 |
JHP-2-8 | 1200/1400/1700/1800 | 200x200x200 | 8 | 5 |
JHP-2-12 | 1200/1400/1700/1800 | 200x200x300 | 12 | 6 |
JHP-2-27 | 1200/1400/1700/1800 | 300x300x300 | 27 | 8 |
JHP-2-36 | 1200/1400/1700/1800 | 300x300x400 | 36 | 10 |
JHP-2-64 | 1200/1400/1700/1800 | 400x400x400 | 64 | 15 |
JHP-2-125 | 1200/1400/1700/1800 | 500x500x500 | 125 | 25 |
JHP-2-216 | 1200/1400/1700/1800 | 600x600x600 | 216 | 36 |
JHP-2-512 | 1200/1400/1700/1800 | 800x800x800 | 512 | 64 |
JHP-2-729 | 1200/1400/1700/1800 | 900x900x900 | 729 | 81 |
JHP-2-1000 | 1200/1400/1700/1800 | 1000x1000x1000 | 1000 | 100 |
Note:Special size can be customized. |
